What is Money minting?
What is Money Minting?
Coin production is referred to as “money minting.” A manufacturing facility that produces coins that are used as a nation’s currency is referred to as a mint. Typically, a nation’s central bank or an independent mint with authorization from the central bank mints its national currency.
Some national mints are privatized and are allowed to pursue commercial exploits such as minting uncirculated coins such as collector coins and medals.
Coins are used as gifts, keepsakes, or investments by coin collectors. The History of Coin Making Over 2,000 years ago, the ancient kingdom of Lydia (present-day Turkey) began minting coins. The ancient coins were minted by hand through striking blank pieces of metal such as gold, silver, or copper using hammers.
The metals were placed on a die implanted into a solid surface, and a second coin die is placed on top where it is struck with the hammer on an anvil.
Medieval coin minting improved on the ancient methods as it used pre-formed round discs of metal and a screw press. The process produced more consistent quality coins than the ancient minting process.
Modern coins are minted with hydraulic coining machines that mechanically load blanks inside them. In a short amount of time, the machines can stamp between 100 and 300 tons of coins. Such a substantial minting capacity is crucial for large minting houses like the U.S. Mint, which mints billions of coins per year.
Early Coin Minting
Early coin minting began as a result of an increase in European mining activities in the 15th century. The shape of coins was determined by the striking process used, and the chief material was iron and later on silver and gold.
Metal coins were cast as ingots that were passed through steel rollers powered by watermills and horse gin. The rolling process was performed to obtain the correct thickness and size of the coin. For stamping the coin designs, screw presses that could be operated by hand were developed.
During the same period, Germany also developed roller presses that were more sophisticated than screw presses. Die designs could be punched or engraved into the curved surfaces of two rollers that were pitched together using roller presses. It allowed a whole fillet to be fed between the rollers and come out impressed.
Modern Minting
The invention of steam engines in the 1770s by Matthew Boulton and James Watt brought about an efficient power source that was hastily adopted into the coin minting process. New types of steel were also produced that could handle much greater stresses.
Furthermore, the invention of the pantograph allowed the minting of standardized design for every coin denomination. Coins could also be manufactured and replicated identically to different scales.
Die production uses a plaster model of the proposed design where a mold is made, and an electrolyte copy is obtained in nickel and copper. The copy is mounted on the pantograph, which allows the cutting of the design to a specific coin size in a block of steel called the master punch.
In a matrix, the master punches, raising a working punch that sinks a working die. The surface of the working die is polished extremely hard before it is sunk. The production of blanks is automated, and blanking presses are high speed.

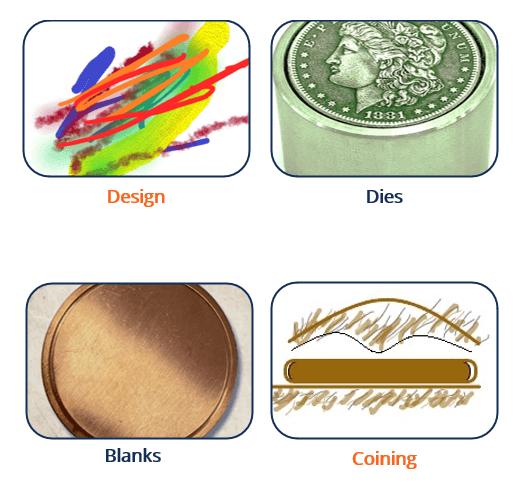

Minting precepts
Image by corporatefinanceinstitute.com
1. Design of a Coin
The first precept is the design of the coin. Coin designers sketch the design of the coin and hand it over to developers and engineers who will perfect the design to fit the proposed coin image. The design must be approved by the authorities before it is adopted.
In the U.S., the coin design is approved by the Secretary of the Treasury. Using 3D modeling software or plaster modeling, a three-dimensional model is carved after the design is approved. A milling model is used to create a synthetic model of the coin. The diameter can range from 10 cm to 30 cm, and the design process can take many months to ensure the coin has the highest quality design.
2. Reduction Dies
Using specialized software, the coin’s design is entered into steel with a coin engraving machine. This process creates a reduction punch, also known as a reduction die. It includes the entire design of the coin. The coin engraving machine finishes the coin delineations and fillet work.
At this stage, the reduction die is loaded onto the hydraulic press, where the design is then transformed into softened steel using between 100 tons and 400 tons of pressure, a process known as hobbing.
The end product is a master die that has a negative impression of the coin design. The reduction die is then hardened through a series of pressing steps where a copy of the coin image is shifted from the hardened steel to the mild steel through pressing.
A positive die is then used to create the actual negative minting dies. The negative minting dies are transformed into a precise shape, hardened, and chromium-plated to augment their strength. A pair of minting dies can reproduce up to one million coins before they need to be replaced.
3. Blanks
Blanks are unmarked flat metal discs yet to be imprinted by dies. Blanks go through a series of steps before a design is imprinted on its surface. A rimming machine is used to remove rough edges on blanks and adds a raised rim. A rim improves coin durability and can add more than a decade to a coin’s life.
Blanks are polished by tumbling for up to six hours with stainless steel beads of numerous sizes. One tumbler is used for a specific alloy to prevent cross-contamination. The blanks are then evenly spread out and hand-dried with towels to prevent scratching.
4. Coining
The coining process depends on the type of coin being minted. The three common types of coins are circulation coins, collector coins, and investment coins. Blanks for circulation coins (coins used for everyday transactions) are loaded through the press where they are struck concurrently on both sides by dies.
The resulting sharper rim is the result of this process, which spreads and stretches metal particles. Collector coins are specially minted for collectors. The press for collector coins has an automatic feed and often has softly glazed detailed images.
Investment coins are made with precious metals and are manufactured using a single stamp method. They usually have a heavy or light frost or a brilliant polish.

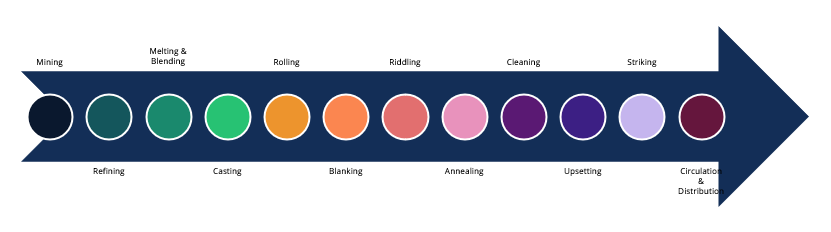

The Money Minting Process
Image by https://corporatefinanceinstitute.com
1. Recycling and mining
The minting process essentially begins with the mining of metals used for minting coins. They include iron, gold, silver, nickel, and copper, among other metals. Before being refined to remove impurities, the metals are mined as ore.
Recycling previous coins is yet another method for obtaining raw materials. Despite having been taken out of circulation, these coins are renewed and put back into circulation after being recycled.
2. Refining
In the process of minting coins, metal ores are refined to get rid of any unwanted impurities.
3. Melting and blending
Melting and blending involve making alloys by blending different types of metals. The U.S. Mint uses cupro-nickel with a pure copper core to make quarters and dimes. The outer layer of the coins is made up of 75% copper and 25% nickel. Zinc coated in copper is used to make the US one-cent coin.
4. Casting
After the blending stage, the metals are cast into an ingot. An ingot is a block of metal cast into a specific size and shape as required by the mint.
5. Rolling
The process of rolling is done to reach the specific coin thickness required. The ingot is rolled continuously between two hardened steel rollers through a compression movement. It means the rollers keep moving towards each other throughout the rolling process.
The rolling process can be difficult and time-consuming. Furthermore, the continuous rolling makes the metal pliable and changes its molecular structure, which enables it to be struck with ease, a method that produces high-quality coins.
6. Blanking
Blanking is where the rolls of metal from the rolling process above are unwound and flattened to remove any curvature or convolutions obtained from prior processing.
It is placed onto a machine that punches out discs of metals called blanks that come out in proper coin thickness and size.
7. Riddling
Riddling involves using a riddling machine to separate correctly sized coin blanks from any foreign matter or impurities gathered from previous processes. Foreign matter may include small pieces of waste or other metals not needed in the coin minting process.
8. Annealing
In order to soften the coin blanks for the subsequent striking process, annealing involves passing them through an annealing oven. The process changes the metal’s physical properties and makes it softer.
The annealing furnace can heat blanks at temperatures above 800°C in an oxygen-free environment to prevent tarnishing.
9. Cleaning
After the annealing process, the blanks are put through a chemical wash where any impurities such as dust or oil on their surface are cleaned off. Because the striking process has the potential to permanently embed any foreign matter on the surface of the blanks, the cleaning stage in the minting process is critical.
The washing also restores the original color of the blank, and the dryer steam dries the cleaned blanks. Collector planchets go through a cleaning process described as burnishing, where they are placed in a drum full of cleaning agents and tiny metal pellets for smoothing and polishing the blank surfaces.
10. Upsetting
Upsetting is basically “upsetting” the edge of a coin to create a rim. It is accomplished using an upsetting mill that applies pressure on metal blanks fed into a groove narrower than its diameter. This pressure pushes the metal up around the edge to create a rim.
The raised metal rim is added to ensure that the coin has the right diameter and protect the design that will be engraved on it. A rim also makes coins stackable. Correctly sized blanks are essential for the striking process in the coining press. The resulting product after the upsetting process is known as a planchet.
11. Striking
The striking process is where the planchets are fed into a coining press for striking the design. The coining press forces the obverse and reverse dies together against the planchet, striking both sides simultaneously. When the dies come together, the planchet metal streams into the shape of the design where it is stamped.
Circulating coins and other uncirculated coins are struck once, but collector coins known as proof coins are struck twice. They are struck at very high rates with a force reaching up to 100 metric tons of pressure for circulating coins. At the U.S Mint, rates reach 720 coins per minute.
12. Circulation and Distribution
After the striking process, coins are inspected, weighed, and counted. If they pass, they are ready to be added to circulation. Collector coins are distributed to coin collectors anywhere in the world or in whatever manner prescribed by the mint. Circulation coins in the U.S. are shipped to the Federal Reserve for distribution.
World’s Prominent Mints
1. S. Mint
S. Mint is a bureau of the Department of Treasury that makes the country’s circulation coins and collector coins. It oversees production facilities in Philadelphia, Denver, San Francisco, and West Point, which use a variety of machines and processes at each site.
It is the largest mint in the world, with a capacity to produce over 28 billion coins per year.
2. The Royal Mint
The Royal Mint is a government-owned mint founded in AD 886. It mints circulation coins for the United Kingdom and produces coins for more than 60 countries around the world, including New Zealand and many Caribbean nations. It is the world’s leading export mint. It produces 2-billion-pound sterling coins for circulation every year.
3. The Paris Monaie
Monnaie de Paris is a French mint founded in AD 864, making it the oldest mint in the world.
4. Other National Mints
Royal Canadian Mint
China Banknote Printing and Minting Corporation
Royal Australian Mint
More Resources
I appreciate you reading CFI’s Money Minting instruction manual. To keep advancing your career, the additional CFI resources below will be useful:
Fiat Money
How much money is worth Minting Crypto
NFT
View all resources for wealth management.
- Money minting is the official process of producing coins, typically under government authority.
- Historically, money minting involved physically stamping precious metals like gold or silver into standardized coins.
- The primary purpose of money minting is to create a reliable, standardized, and difficult-to-counterfeit physical currency.
- Central banks or national mints are usually responsible for overseeing the process of money minting.
- Money minting transforms raw metal blanks into finished coins bearing specific denominations and designs.
- Modern money minting employs sophisticated machinery for blanking, annealing, upsetting, striking, and inspecting coins.
- Seigniorage, the profit made from money minting, arises when the face value of a coin exceeds its production cost.
- Counterfeiting poses a constant threat, driving continuous innovation in security features during money minting.
- Commemorative coins are a special category often produced through limited money minting runs for collectors.
- While money minting specifically refers to coin production, the term is sometimes loosely used for printing paper money (though “printing” is more accurate).
- The design and symbols on coins produced by money minting often reflect a nation’s history, culture, or values.
- Strict quality control is essential throughout the money minting process to ensure uniformity and prevent defects.
- The choice of metals and alloys used in money minting balances durability, cost, and resistance to wear.
- Unlike digital currency creation, money minting results in tangible, physical objects that circulate in the economy.
- Money minting operations are typically highly secure facilities to protect against theft and fraud.
- The decision to initiate new money minting often responds to demand for coinage, replacement of worn coins, or new denominations.
- Ancient civilizations like Lydia were pioneers in the development of standardized money minting.
- Errors in the money minting process, while rare, can create valuable collectibles for numismatists.
- Money minting represents the sovereign right of a nation to issue its own physical currency.
- The cost of the raw materials is a significant factor in the overall economics of money minting.
- While central banks control the supply of money broadly, money minting is the physical manufacturing arm of that system for coins.
- Public tours of some mint facilities offer insights into the fascinating process of money minting.
- Recycling old or damaged coins is an important part of the sustainable management of money minting.
- The shift towards cashless transactions impacts the long-term demand for traditional money minting.
- Ultimately, money minting is a cornerstone of a physical currency system, providing durable and trusted token money.
